PROFIS Engineering Suite structural design software

Item #r6502279

Structural engineering anchor design software with codes and approvals, Component Based Finite Element Method calculations and a variety of fastening methods

Codes and approvals: Supports many country-specific design methods, and can generate detailed design reports to easily verify compliance.
Training and support: No matter if you are a newcomer or an expert, we offer technical training and demonstrations (face-to-face and online) to guarantee you can exploit the full potential of the software.
Compatible with: Internet browsers like Chrome, Edge, Firefox and others (cloud-based software)

More technical data

Customers also searched for PROFIS Anchor, PROFIS, Anchor Design or software

Highlights

Complete solution for designing structural connections

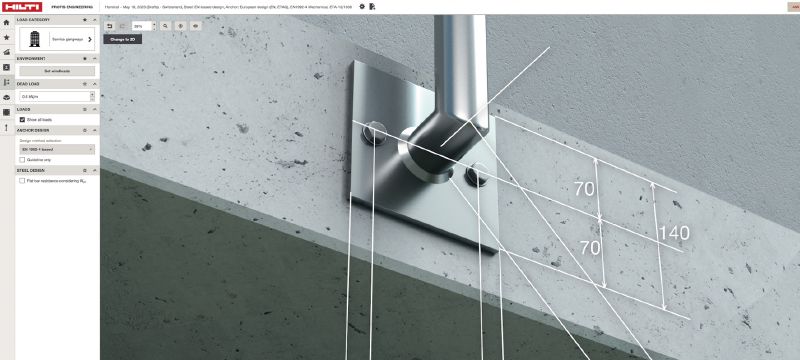

Easily design, calculate and analyze multiple connection types, including anchoring to concrete, masonry, post-installed rebar, concrete overlay and handrail designs

Stay up to date with the latest international codes and approvals automatically

Save hours of research time as the software automatically updates to the latest versions of international codes and approvals, including: ACI, CSA, Eurocode, Australian Standards and many others

Free version available for everyday structural connections

PROFIS Engineering Standard gives you free access to all the application modules and allows you to generate detailed, step-by-step calculation and design reports (including baseplate rigidity check) for post-installed or cast-in-place anchors

Import from structural analysis software and export to BIM and CAD

With PROFIS Engineering Premium, import loads from Excel or directly from other structural analysis software programs (e.g. RISAConnection, RAM Structural System, STAAD.Pro, SAP2000, ETABS, Robot, Revit, and Dlubal RFEM and RSTAB) and export your final designs in 2D and 3D to integrate them into your standard BIM and CAD programs

Improve productivity with advanced anchor and baseplate design features

With PROFIS Engineering Premium, use CBFEM (Component-based Finite Element Method) to design your full baseplate connection, including calculations for anchors, stiffeners, welds, profiles and concrete

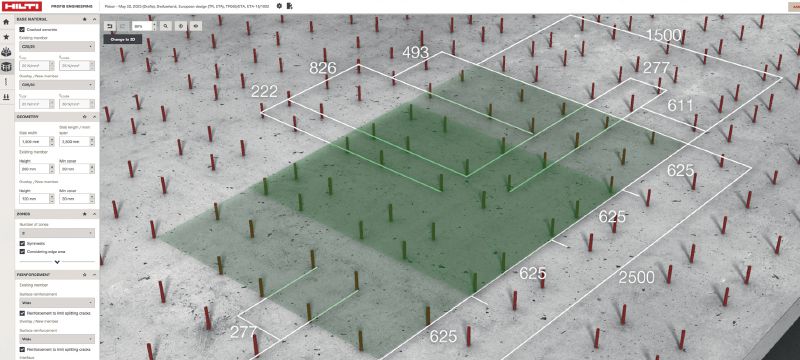

Streamline your design of post-installed rebar connections and overlays

Easily calculate t-joints, lap splices and shear dowel loads in just a few clicks, and use the concrete-to-concrete module for efficient designs compliant with common design methods (Eurocode 2, TR069, ACI and many others)

Technical Data

Documents & Videos

What license fits your needs?

Try our premium version free of charge for 30 days. After the trial expires, you will have the choice to buy Profis Engineering Premium or switch to the free version.

Standard

Standard License

Gain access to all of the Structural Connection Applications.

Free after 30-Day Trial of Premium
Trial

30-Day Trial

Experience all of the Premium features for 30 days.

Free for 30 days
Premium

Individual License

Experience all of the Premium features assigned to one user.
Premium

Floating License

Experience all of the premium features shared between an unlimited number of users. For each license purchased, one user at a time can access the premium features.

Collaboration
Structural Applications and Design Codes
Base Plate Design Type
3rd Party Integrations and productivity

Standard license for every user
License shared by a user group
Project Sharing and collaboration
ACI, EN199-4 and multiple local codes and annexes
Post-Installed Anchors
Cast-in Anchors
Post-installed Rebars
Overlay
Masonry
Handrail
Metal Deck
Diaghphram
Timber Screwn Design
Advanced Baseplate Design with CBFEM
Baseplate Rigidity Check with CBFEM
Rigid Anchor Load Distribution
SOFA Hilti Design Method
AISC Design Guide 1
RISA Connection
RAM
Dlubal
STAAD.Pro
Robot
ETABS
SAP 2000
Custom Template Creation
Favourite Option
Image Adding to Reports
Engineering Trainings
