Features & Applications

Features
  • More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
  • Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
  • Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
  • Easier inspections – head marking showing anchor type and length to simplify quality control after setting
  • Large DIN 9021 washer – suitable for use in oversized or slotted clearance holes
Applications

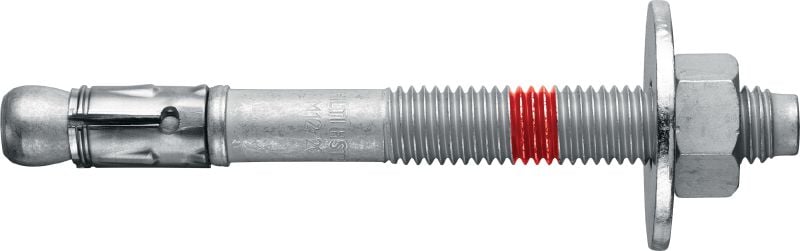

  • Galvanized carbon steel wedge anchor with larger washer for all safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

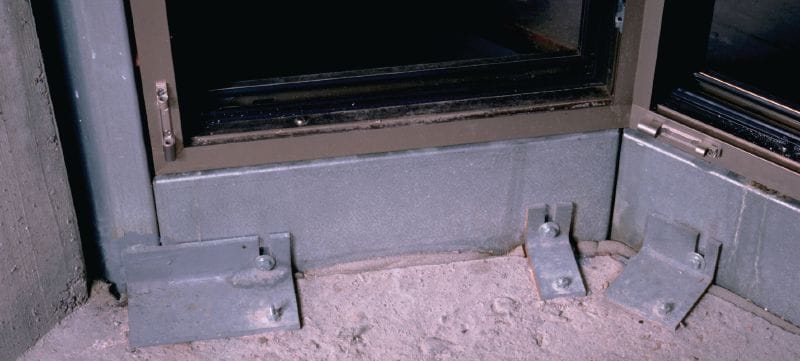

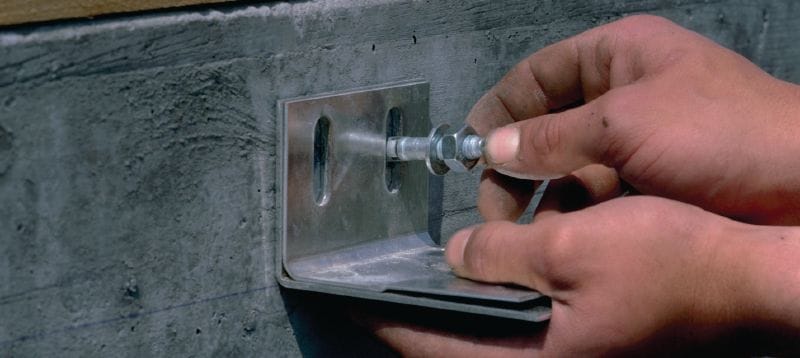

  • Fastening baseplates, handrails, façade systems, machinery or racking to concrete
  • Suitable for use in dry, indoor environments
