MI-SGC M12
New productItem #r3979

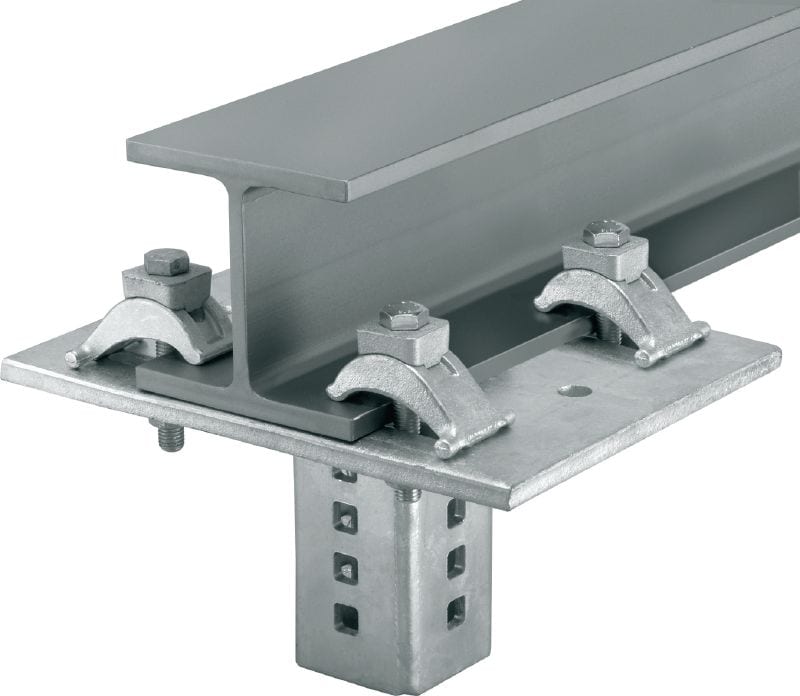

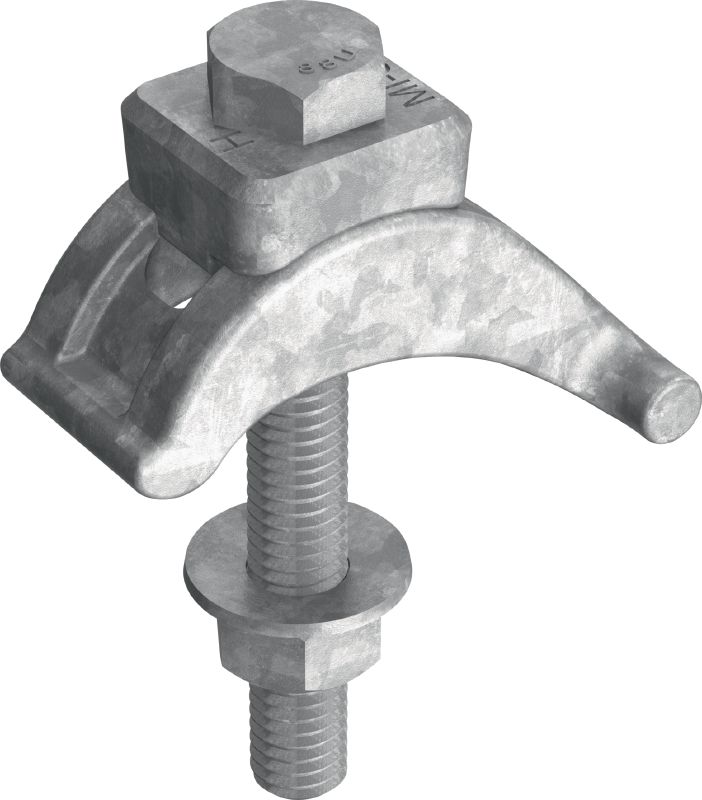

Hot-dip galvanised (HDG) single beam clamp for connecting MIQ steel baseplates to steel beams
- Thread connection - M: M12
- Weight: 0.36 kg
- Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Share
Features & Applications
Features & Applications
Features
- For steel beams with flange thickness from 3 to 36 mm and angles of up to 15°
- Corrosion protection on the steel beam is not damaged by the beam clamp
- Equipped with a set of vibration-resistant washers
Applications
- Compatible with steel beams with flange thicknesses from 3-36 mm and angles of up to 15°
